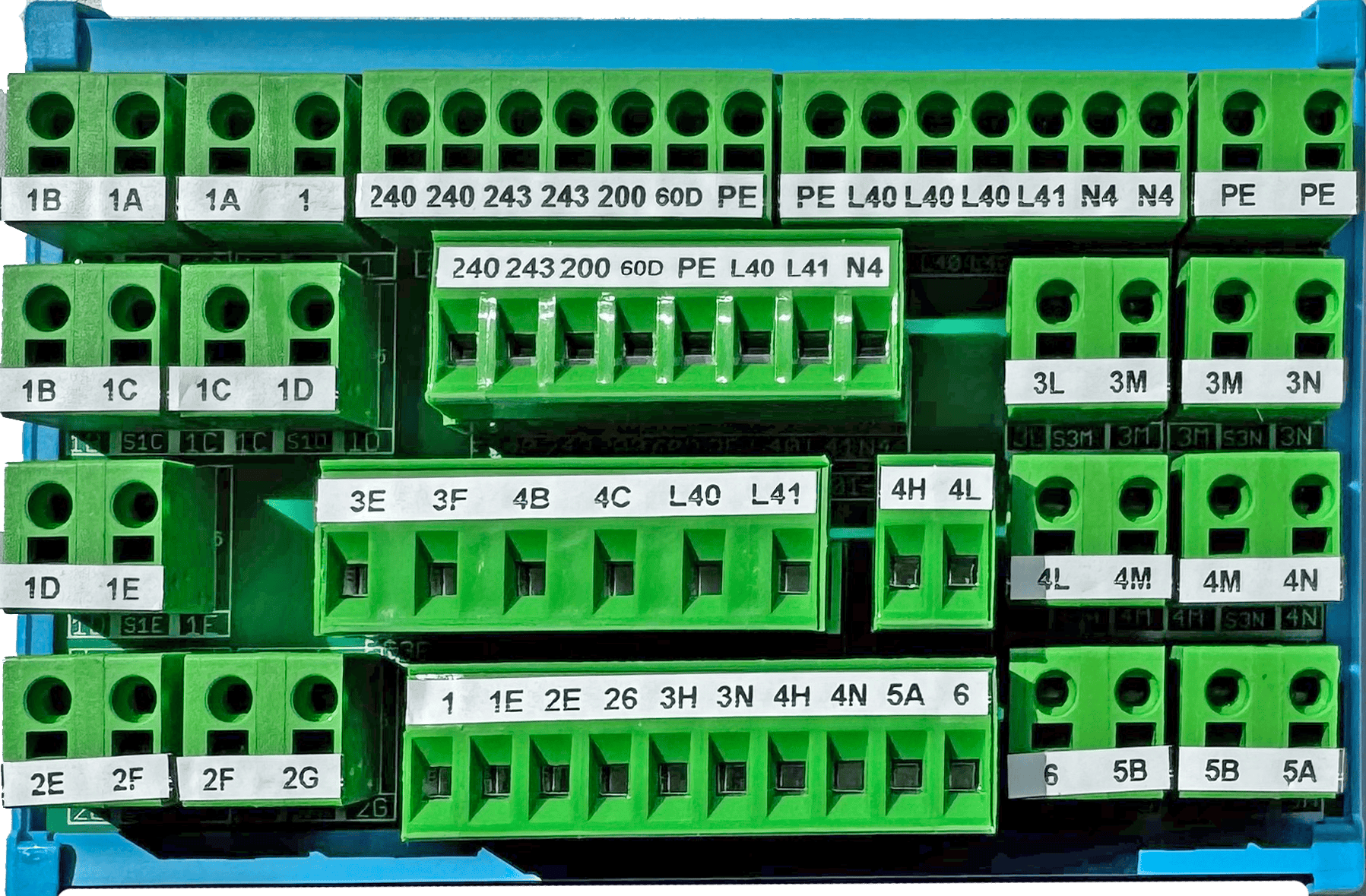

X6-D525-101 – Shaft Pit Location
Name of the assembly group: | X6-D525-101 |
---|---|
Use function: | The module X6-D525-101 serves as an interface together with the ERG-2018 for connecting the switches and the inspection lamp in the shaft pit. This is the first version for the DAVID-D525. |
Time of use: | From 2025-07 |
Relay elements: | None |
Dimensions (with shell): | (length x width x height) 126 mm x 77.2 mm x 40 mm |
Weight: | Approx. 300 gram |
Power supply: | 24V DC & 230V AC |
Switching cycles: | None |
Protection level: | IP 43 / pollution degree II |
Place of installation: | In the elevator shaft - Pit |
Ambient temperature: | 0 to +45 °C |
KW-Number: | 1100609 |
