X11-XPU-101 module
| Name of the assembly group: | X11-XPU-101 |
|---|---|
| Use function: | It is used as an interface for connecting the ELGO-LIMAX Safe CP33, for connecting two protected space traffic lights, two CANbus connections and as a voltage distributor |
| Obsolete component: | X11-CANbus-ELGO |
| Time of use: | From 2020-04 to 2023 |
| Dimensions (with shell): | (length x width x height) 70 mm x 77.2 mm x 50 mm |
| Weight: | Approx. 700 gram |
| Power supply: | Terminals 200 - 24V DC
Terminals 500 - 0V GND |
| Protection level: | IP 43 / pollution degree II |
| Place of installation: | In the inspection box |
| Ambient temperature: | 0 to +65 °C |
| KW-Number: | 1100420 |
Car - X11-XPU module - Connection options

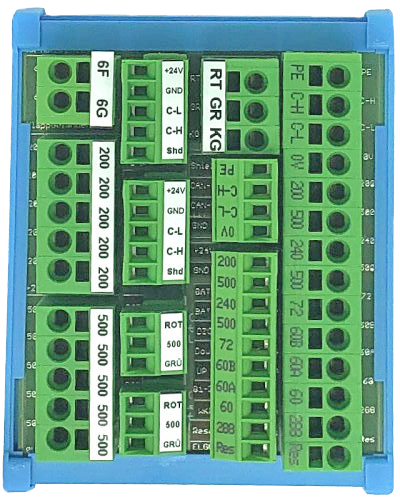

The new X11-XPU module replaces the X11-ELGO-CAN and X11-SRA modules! It serves as a terminal strip for the connection of all CANbus devices on the car, the SAFE shaft copying, the safety area traffic lights and as a voltage distributor +24V & 0V DC.
