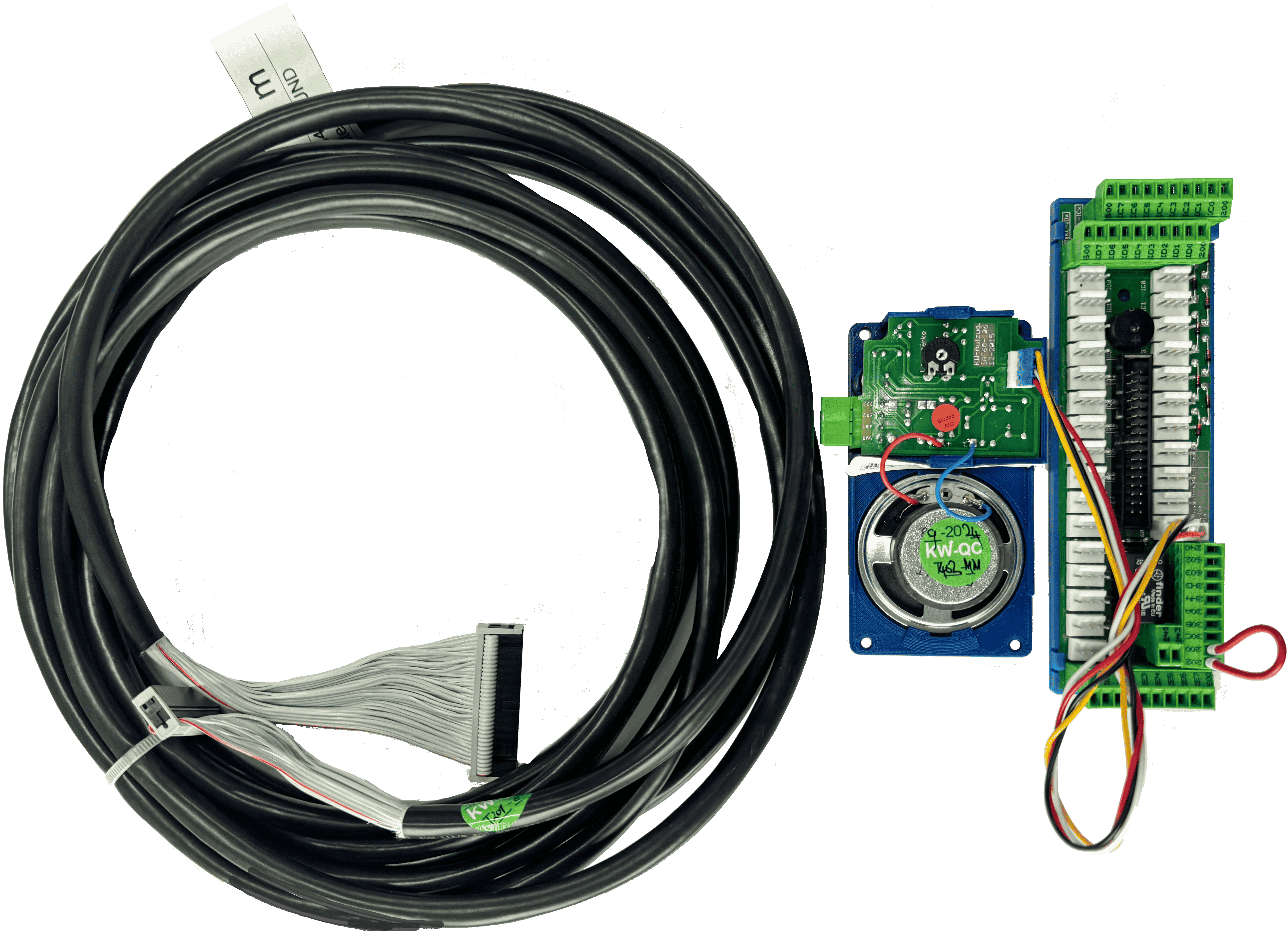

Set: EIT-106-K & SAF60-106 & 34p Cable
| Name of the assembly group: | Set - EIT-106-K & SAF60-106 & 34-pin connection cable |
|---|---|
| Use function: | This set is used for external panels. It includes the connection interface EIT-106-K, the cabin intercom system SAF60-106, and the 34-pin internal panel cable, which connects to the cabin controller (FKR). The components are installed behind the internal panel. |
| Time of use: | From 2016-04 |
| Relay elements: | K30 |
| Dimensions (with shell): | (length x width x height) 147 mm x 46 mm x 30 mm |
| Weight: | Approx. 700 gram |
| Power supply: | Terminals 200 - 24V DC
Terminals 500 - 0V GND |
| Switching cycles: | 1.000.000 |
| Protection level: | IP 43 / Pollution degree II |
| Place of installation: | Rear side of the internal panel |
| Ambient temperature: | 0 to +45 °C |
| KW-Number: | 1201531 |
