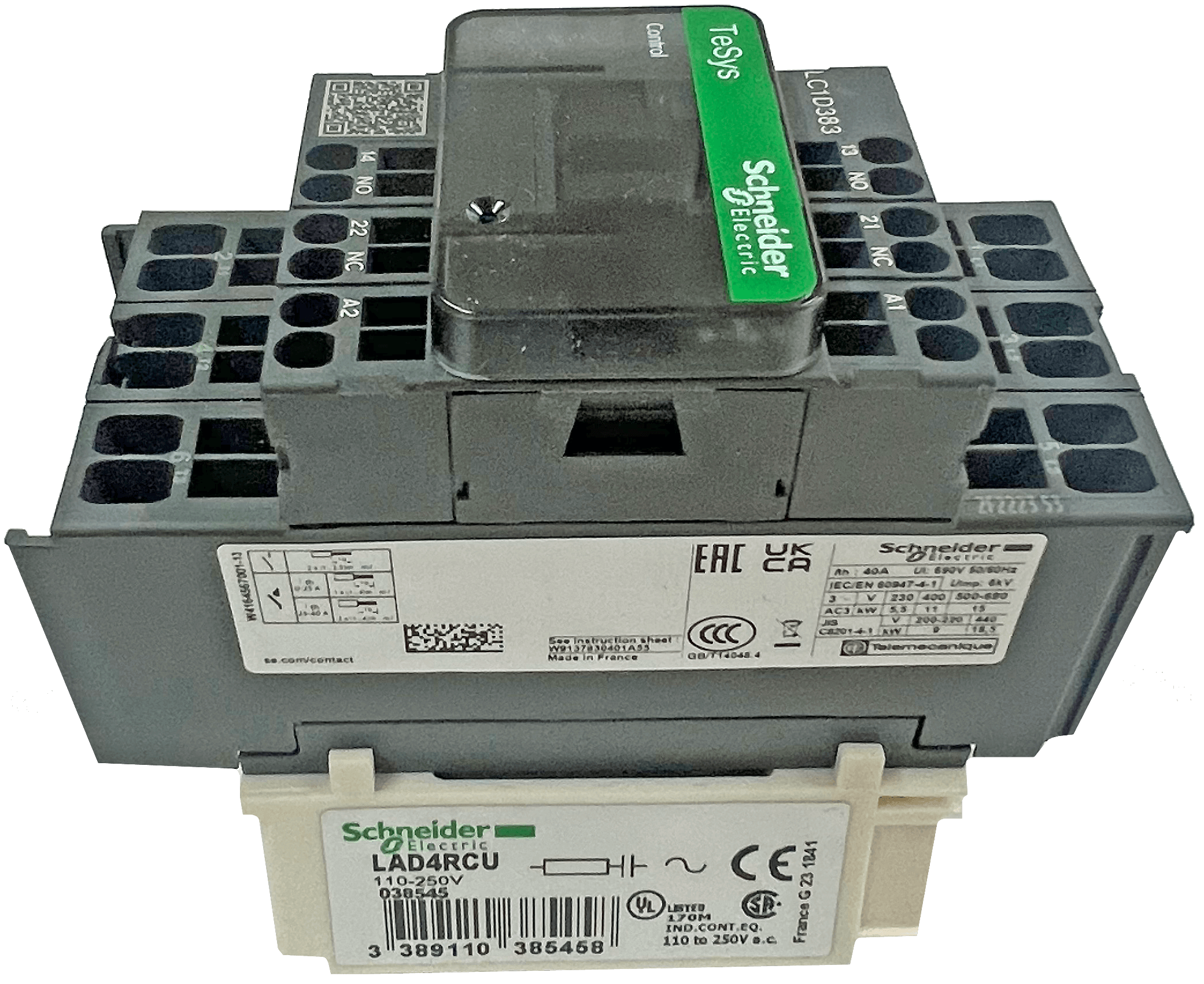

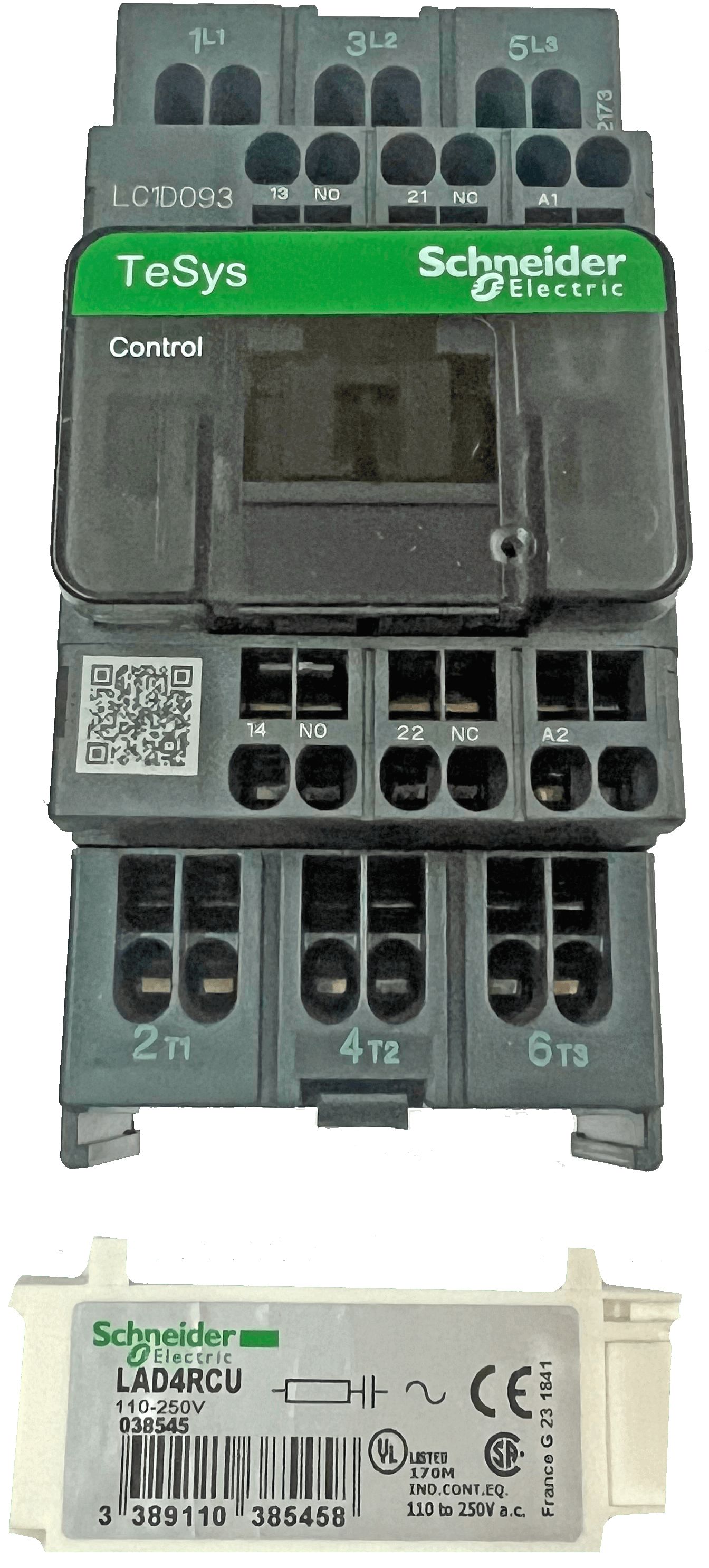

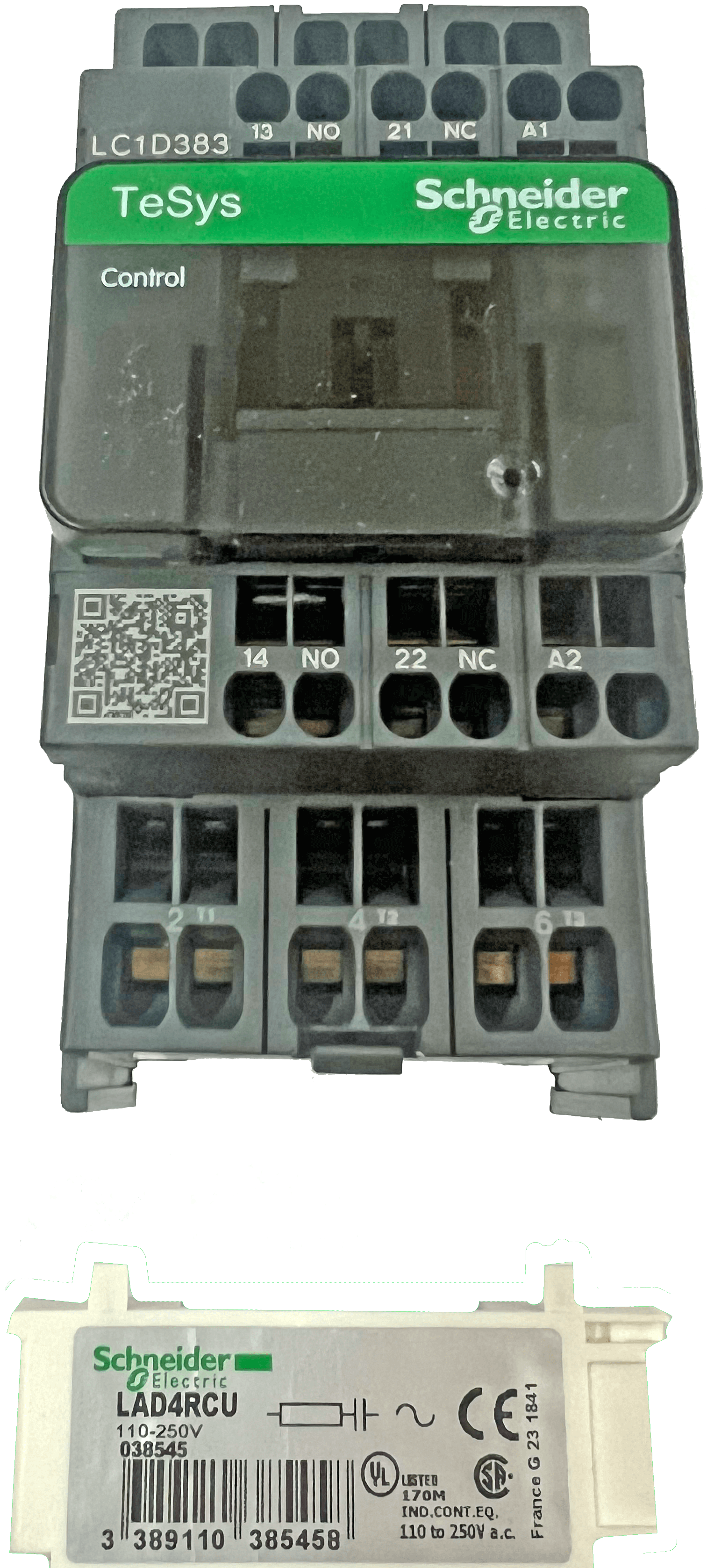

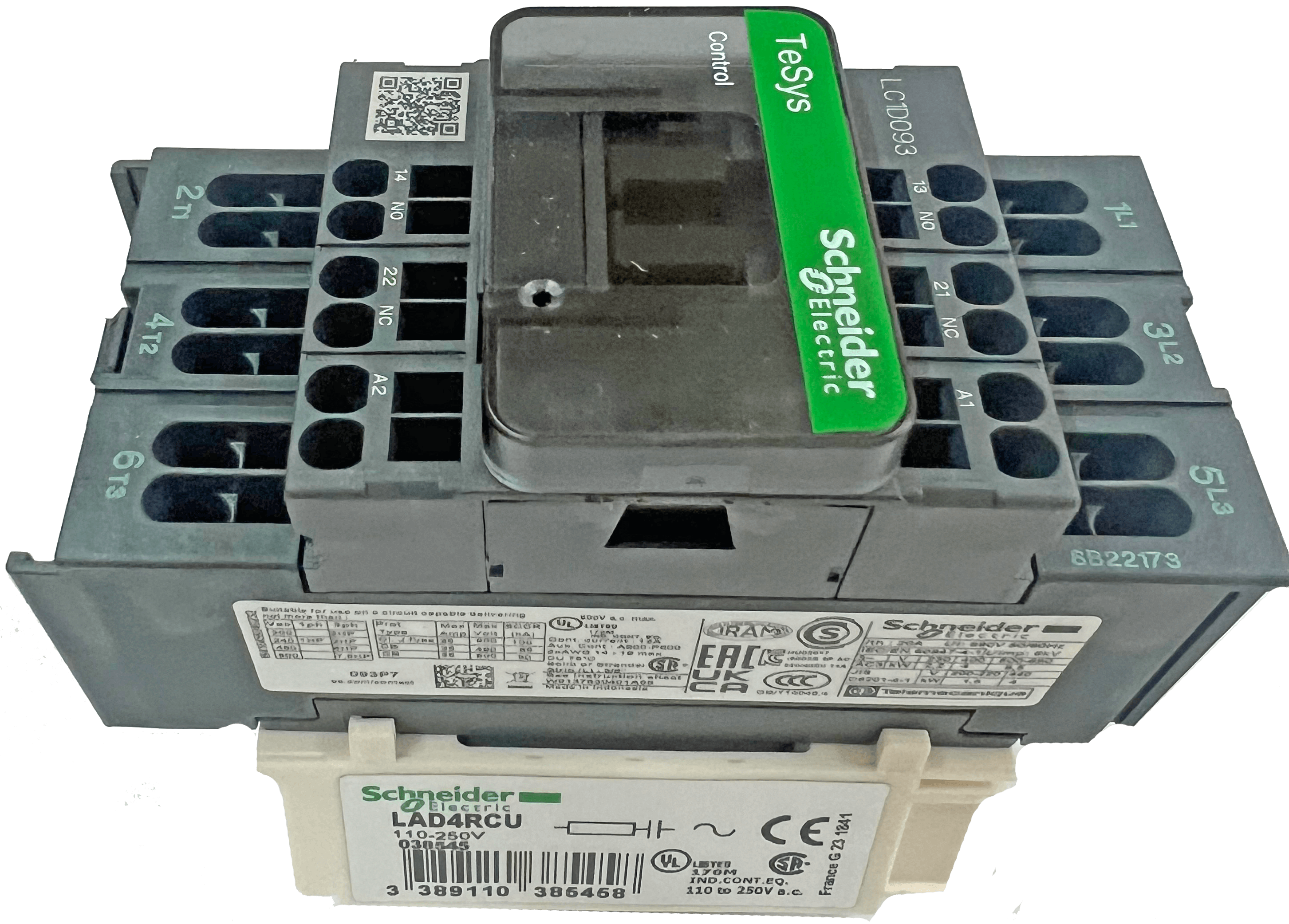

RC element 230V AC large (main contactor/brake contactor & auxiliary contactor)
| Name of the assembly group: | Main contactor / auxiliary contactor |
|---|---|
| Use function: | The main contactors were used as K3 - K5 for frequency-controlled control systems, as K1 - K2 - K3 - K4 for unregulated rope systems and as K11 - K11A for hydraulic systems. The auxiliary contactors are used as K7 for frequency-controlled control systems as braking contactors, as K2 - K2A for hydraulic systems and as auxiliary contactors for other functions. |
| Time of use: | From 1996 |
| Weight: | Approx. 200 gram |
| Power supply: | 230V AC / 400V AC |
| Switching cycles: | Approx. 1,000,000 switching cycles |
| Protection level: | IP 43 / pollution degree II |
| Place of installation: | In the control cabinet |
| Ambient temperature: | 0 to +65 °C |
| KW-Number: | 1099902 |
