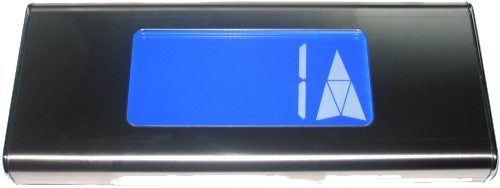

LCD-V532-VEGA
| Name of the assembly group: | LCD-V532-Vega |
|---|---|
| Use function: | The LCD display V532 is intended for surface mounting above the shaft door. |
| Time of use: | From 2018 |

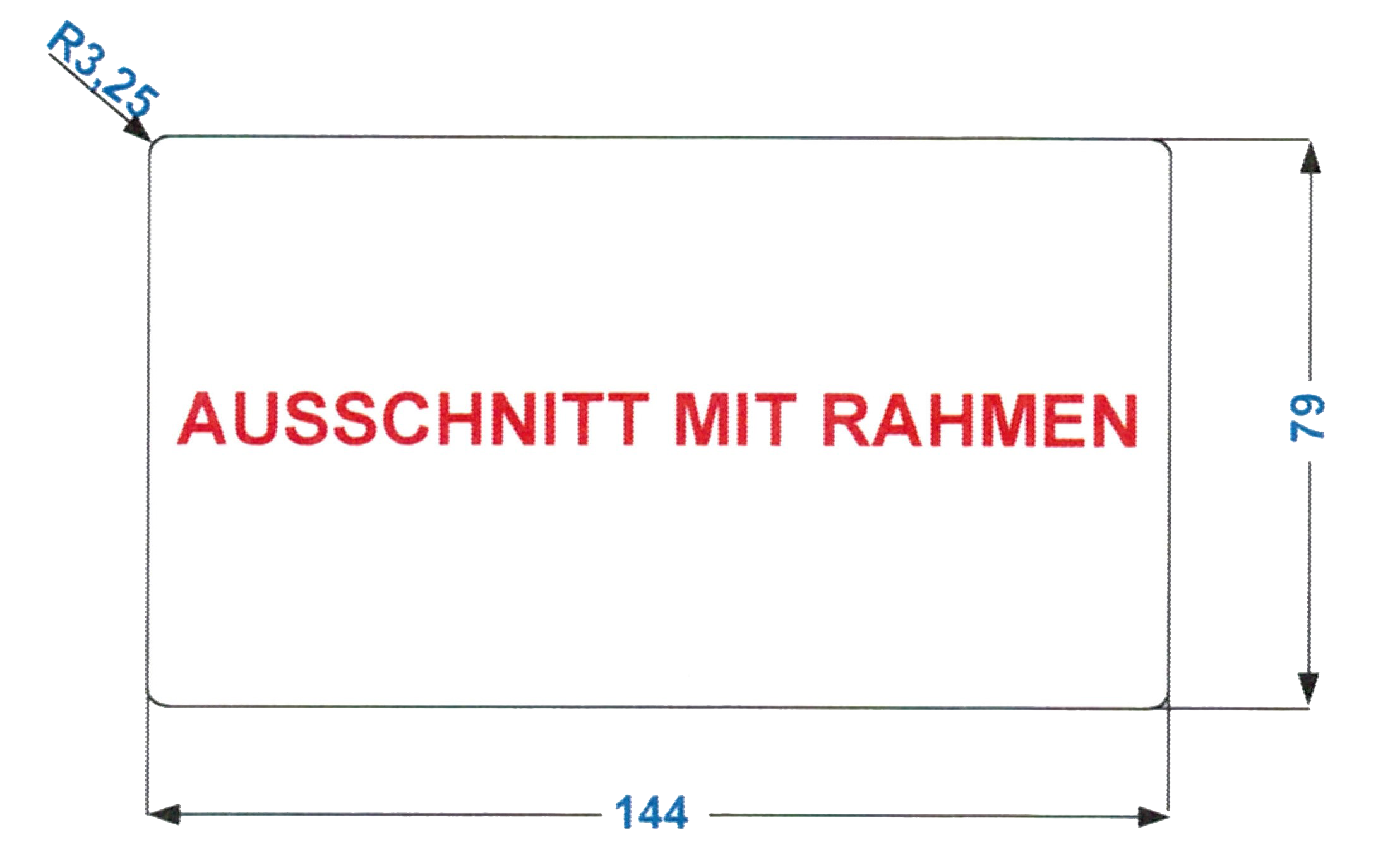

| Display section: | 144 mm x 79 mm R3,25 |
| Weight: | Approx. 800 gram |

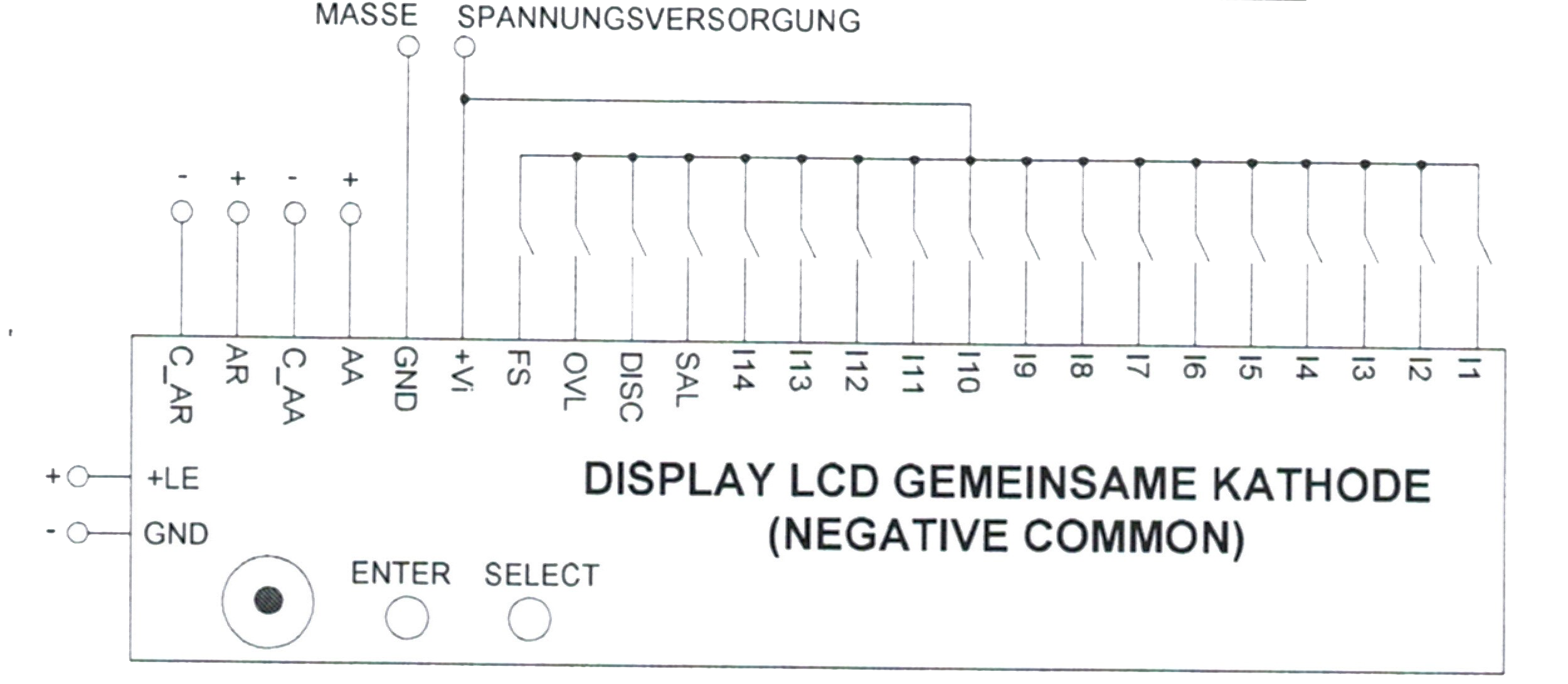

| Power supply: | Terminals 200 - 24V DC
Terminals 500 - 0V GND |
| Cover case: | Made of polycarbonate, for front panel thickness of 2mm |
| Protection level: | IP 43 / Pollution degree II |
| Place of installation: | Behind the panel |
| Ambient temperature: | 0 to +45 °C |
| Control unit: | For Parallel-1ausN only! |
| KW-Number: | 1001061 |
