GW60-106 Gateway
| Name of the assembly group: | GW60-106 |
|---|---|

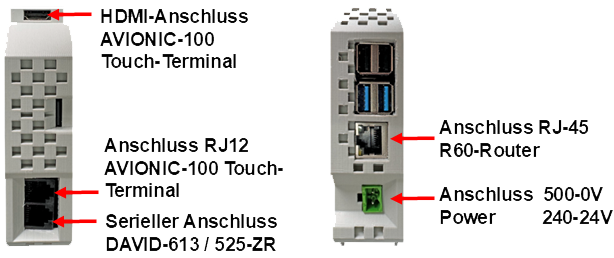

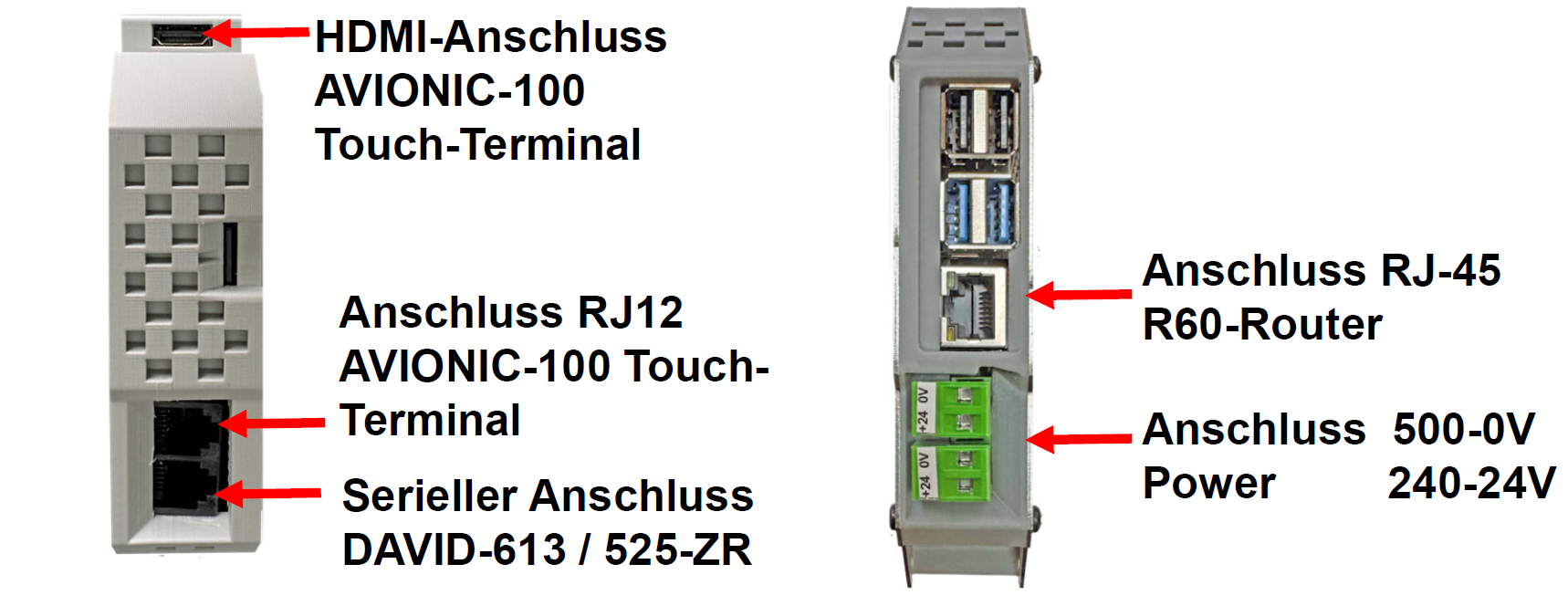

| Use function: | The GW60-106 Gateway is an Internet gateway that provides remote data communication for monitoring and control applications. Data is transmitted bidirectionally between the control computer and the gateway via a serial interface and is then made available to the data center through an R60 router. The gateway also serves as the interface for controlling the AVIONIC-100 touchscreen terminal. |
| Obsolete component: | GW60-104 |
| Time of use: | From 2026-06 |
| Relay elements: | None |
| Dimensions (with shell): | (length x width x height) 132 mm x 98 mm x 34 mm |
| Weight: | Approx. 400 gram |
| Power supply: | +24V DC |
| Switching cycles: | None |
| Protection level: | IP 43 / Pollution degree II |
| Place of installation: | In the control cabinet |
| Ambient temperature: | 0 to +45 °C |
| KW-Number: | 1100635 |
