GOLIATH-90-42 to 52 External Set
| Name of the assembly group: | Frequency Converter GOLIATH-90 External Set |
|---|---|
| Use function: | The GOLIATH-90 frequency converter set includes the braking resistor as well as the SAS circuit for operation without contactors. |
| Obsolete component: | GOLIATH-60 and GOLIATH-90V |
| Time of use: | From 2009 |

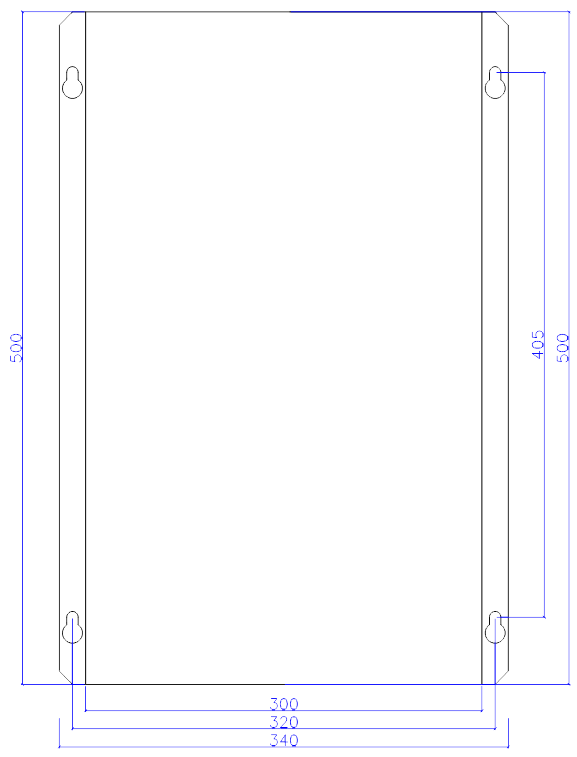

| Dimensions (with shell): | (length x width x height) 305 mm x 425 mm x 200 mm |
| Weight: | Approx. 16000 gram |
| Power supply: | 400V AC – 3 phase |
| Cover case: | Made of galvanized sheet metal |
| Protection level: | IP 34 / Pollution Degree II |
| Place of installation: | In the shaft / engine room |
| Ambient temperature: | 0 to +45 °C |
| Control unit: | KW-Liftbus, DCP-3, LS-2, Parallel |
| KW-Number: | 1000718 |
