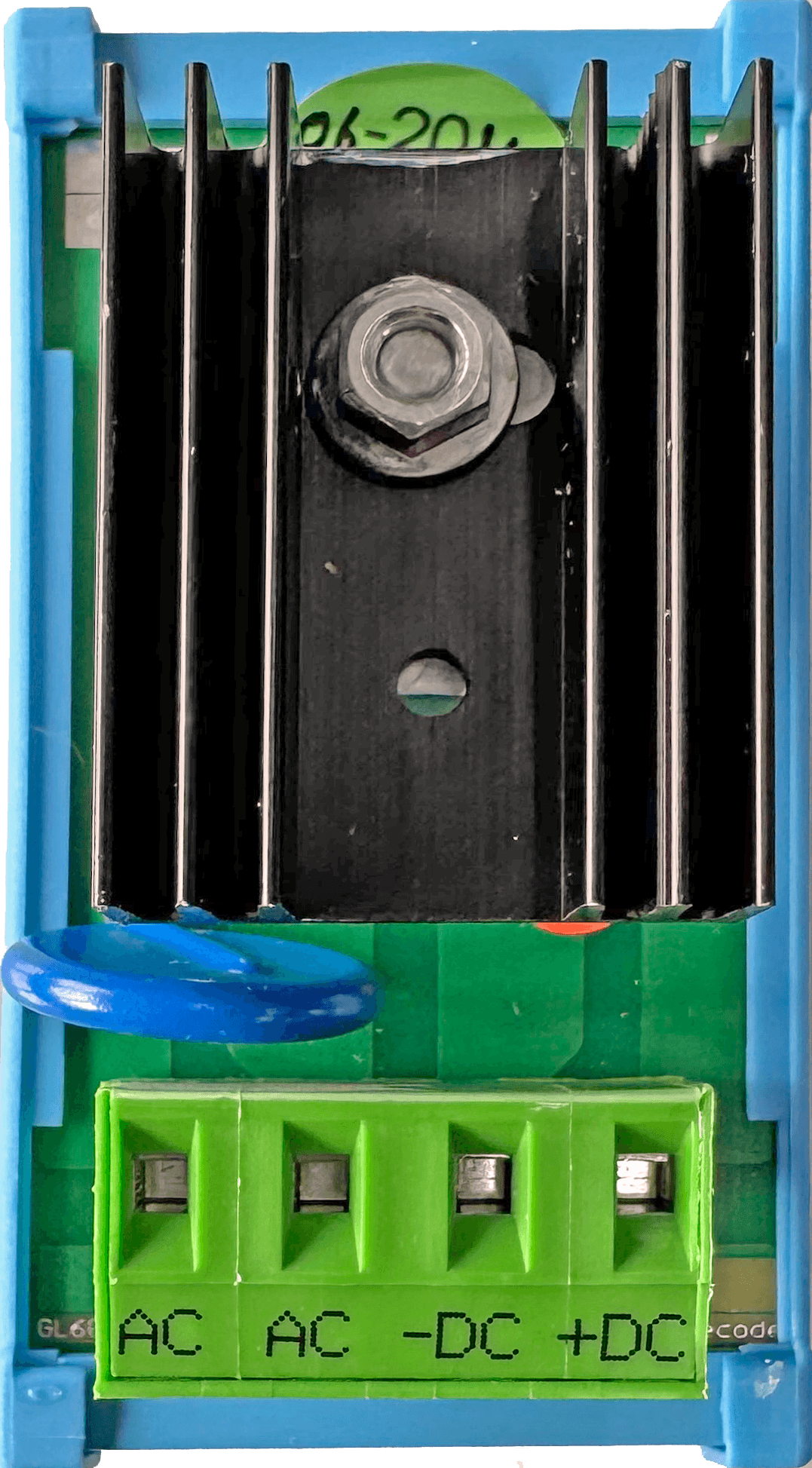

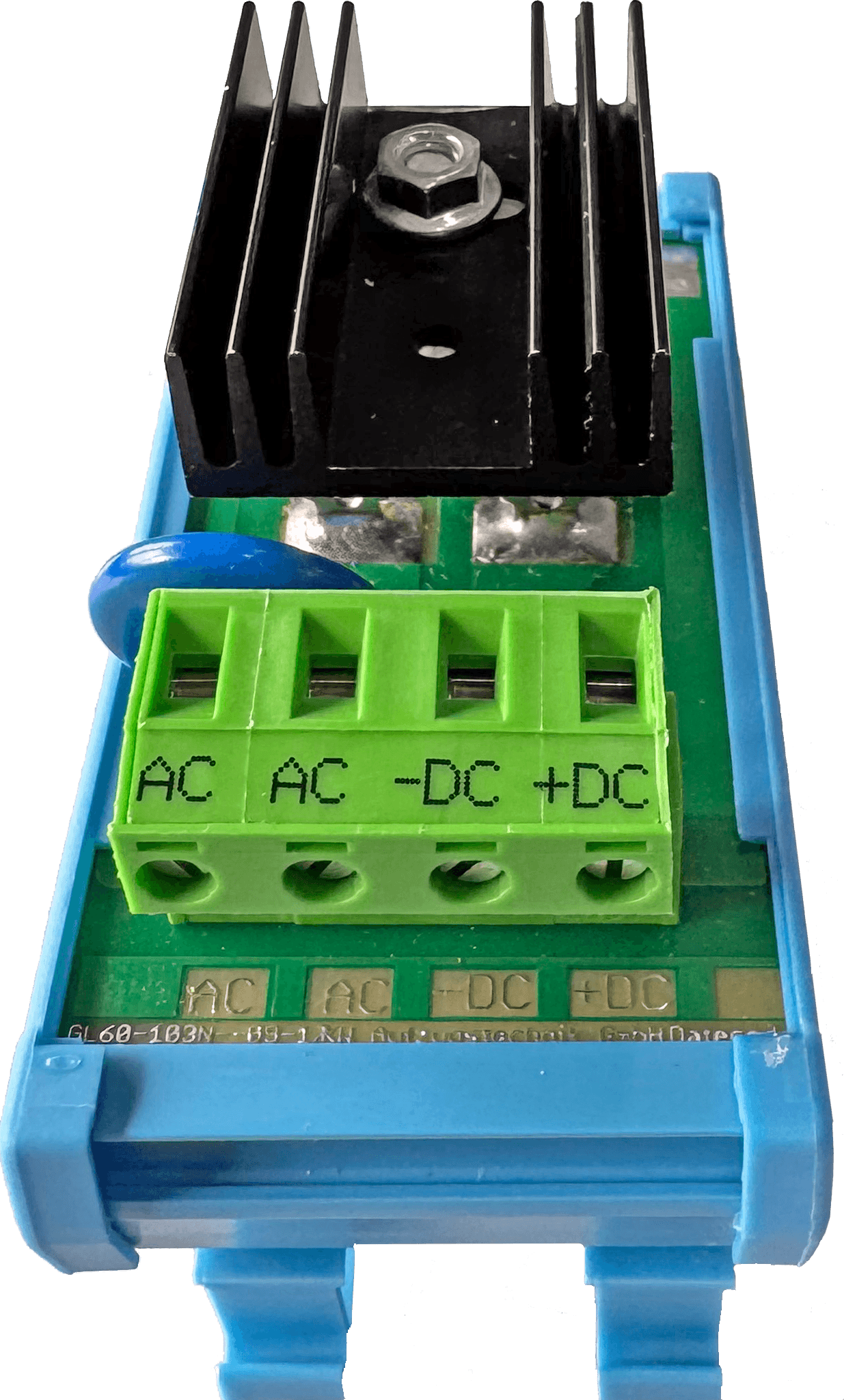

GL60-103N Valve / brake rectifier
| Name of the assembly group: | GL60-103N |
|---|---|
| Use function: | The GL60-103N module is a special version for controlling DC voltage brake solenoids and DC voltage valves with a voltage of +24V DC. |
| Time of use: | From 2017-09 |
| Dimensions (with shell): | (length x width x height) 46 mm x 77.2 mm x 40 mm |
| Weight: | Approx. 400 gram |
| Power supply: | +24V DC / 205V DC / 230V AC |
| Protection level: | IP 43 / pollution degree II |
| Place of installation: | In the control cabinet |
| Ambient temperature: | 0 to +45 °C |
| KW-Number: | 1100226 |
