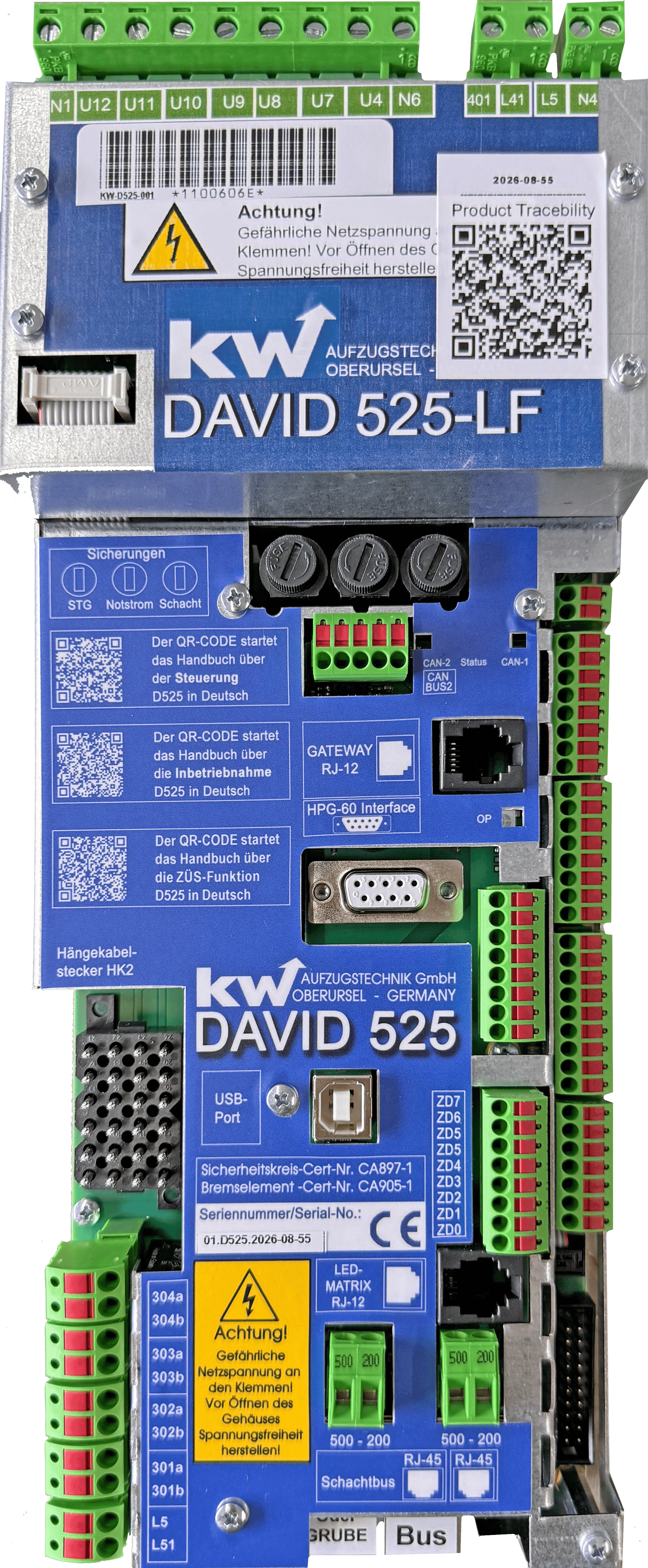

DAVID D525-LF-ZR – Central Computer
| Name of the assembly group: | D525-ZR-LF |
|---|---|
| Use function: |
The control concept of the DAVD-525-LF is based on a decentralized topology in which the individual components communicate with each other via bus connections. The master structure is located in the central computer (ZR), which communicates via the bus with the car computer (FKR) in the elevator car and with the floor computers (ER) located on the individual floors. The LF variant is designed for installation in the door frame where only a shallow installation depth is available. |
| Time of use: | From 2026-09 |
| Relay elements: | None |

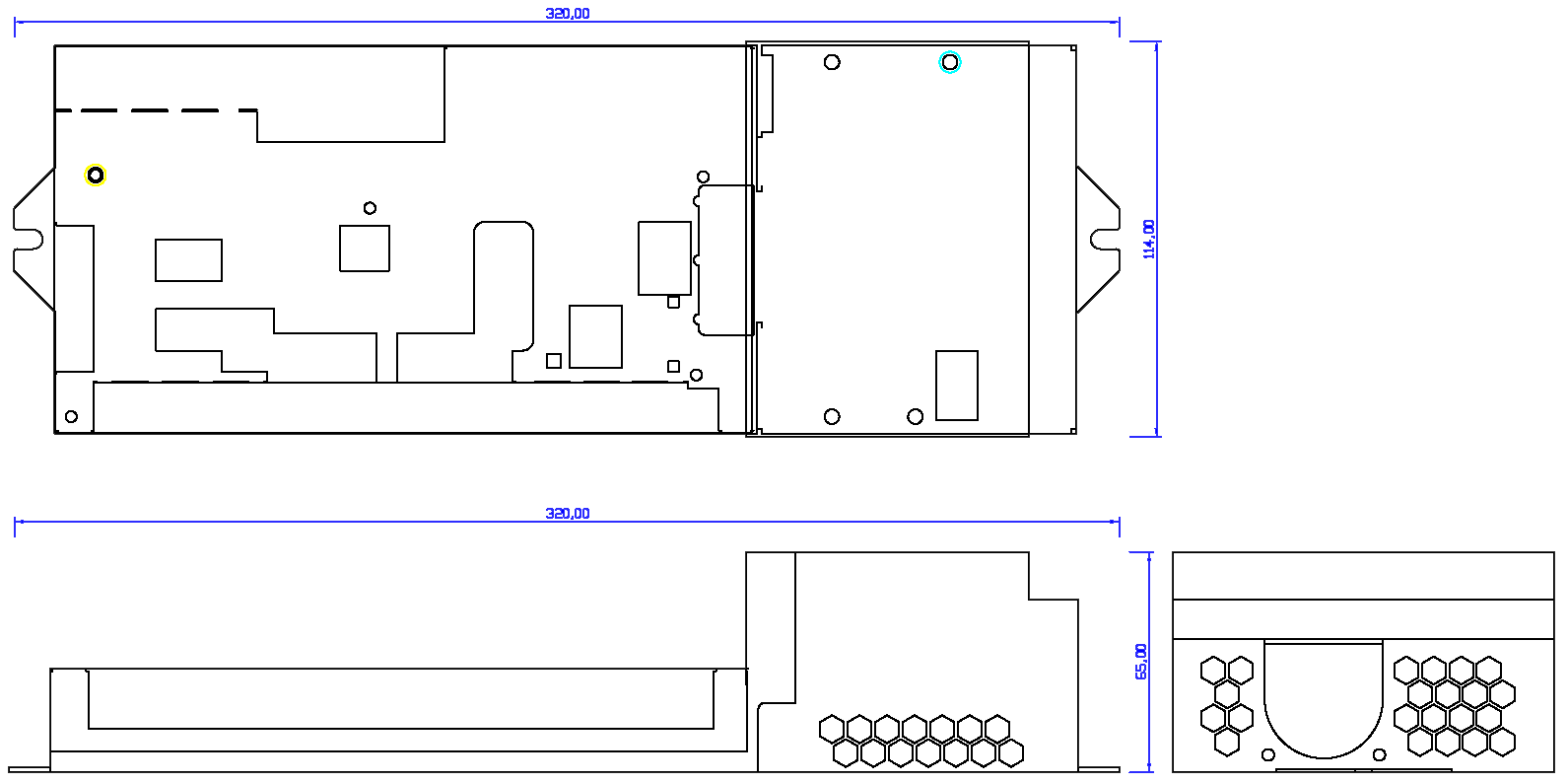

| Dimensions (with shell): | (length x width x height) 320 mm x 114 mm x 65 mm |
| Weight: | Approx. 1500 gram |
| Power supply: |
Terminals
L5,L6 - 230V AC
Terminals N4,N6 - 0V AC |
| Switching cycles: | None |
| Protection level: | IP 43 / Pollution degree II |
| Place of installation: | In the control cabinet |
| Ambient temperature: | 0 to +45 °C |
| KW-Number: | 1100612 |
